Title Page

  • Site conducted

  • Store No.

  • Prepared by

  • Site

  • Location
  • Conducted on

  • Job number

Antenna

Mast

  • a. Where is the Antenna Installed? Indoor/Outdoor

  • b. Has the Mast or the Mounting Bracket been labelled?

  • c. Take multiple photos of the entire mast or mounting bracket including the antenna

  • d. Are the connectors to the antenna weather proofed?

  • e. Take a photo of the sealed penetration/core holes close to the Antenna.

  • f. What size of the extension Coax cable has been used?

  • g. How long is the Coax cable from the antenna to the CradlePoint?

  • h. Describe the Coax cable path from the antenna to the CradlePoint

  • i. Using your compass app, please specify the exact azimuth (bearing) the antenna is pointing E.g. 0 to 359

CradlePoint

  • a. Is this CradlePoint Installation a New Installation or a Remediation?

  • b. In which room is the CradlePoint unit installed?

  • Please specify

  • c. Please provide close up photo of the CradlePoint

  • d. Please provide wider view photo of the CradlePoint

  • e. Photos of the base showing patch lead connected to POE port

  • f. Photo showing antenna’s leads labelled as 4G/5G A, 4G/5G B, 4G/5G C, 4G/5G D at the CradlePoint

  • iauditor image.JPG

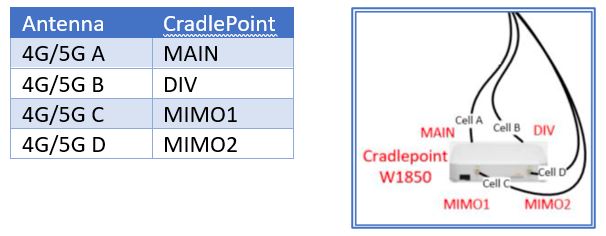

  • g. Are the antenna cables connected according to the provided schematic as shown above:

  • h. Is a PoE adapter used?

  • 1. Describe where the PoE is installed and to which power is connected. Please answer N/A if it is out of scope

  • i. Take multiple photos of the cable path including any penetration/core holes going through

UTP Surge Protectors

  • Are UTP Surge Protectors used?

  • 1. Describe Mounting and Earthing details of the UTP surge protectors

  • 2. Take close up photos of any UTP surge Protectors

  • 3. Take wider view photos of any UTP surge protectors

  • 4. Are the Surge Protectors earthed?

  • 5. Who installed the Earth point? PMT/Others

  • 6. Take a photo of the earthing connection/earth bar.

RF Surge Protectors

  • Are RF Surge Protectors used?

  • 1. Describe Mounting and Earthing details of the RF surge protectors

  • 2. Take close up photos of any RF surge Protectors

  • 3. Take wider view photos of any RF surge protectors

  • 4. Are the Surge Protectors earthed?

  • 5. Who installed the Earth point? PMT/Others

  • 6. Take a photo of the earthing connection/earth bar.
