Monthly Warehouse Racking Inspection

• Document No

undefined

• Yes

  No

  N/A

• Client / Site

  Select

• Conducted on

  Date

• Prepared by

• Location
  Address

• Personnel

• Racking Inspected by:

• Location of racking
  Address

Uprights

• Illustration example



• Is there any visible impact damage to any uprights?

  Safe

  At Risk

  N/A

• Please take photo evidence of damage.

  Media

• Please ensure that items stored are removed from damaged areas until racking is repaired and safe.

• Note bay and frame location here

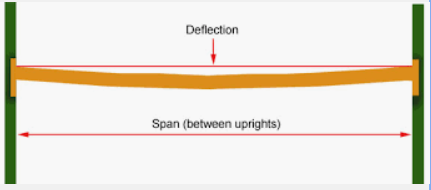

Beams

• Illustration example



• Is there any visible damage to the beams? (e.g. impact, overloading stress or rust?)

  Safe

  At Risk

  N/A

• Please take photo evidence of damage.

  Media

• Please ensure that items stored are removed from damaged areas until racking is repaired and safe.

• Note beam location here

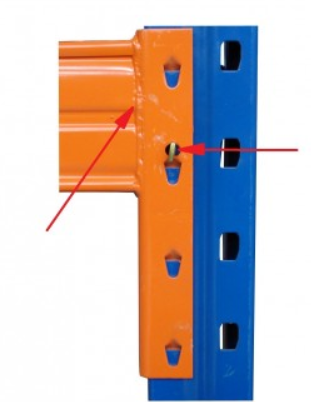

Locking pins

• Illustration example



• Are any of the beams missing there locking pins/clips?

  Safe

  At Risk

  N/A

• Please provide photo of findings

  Media

• Note location of missing pins/clips here

Anchors /Floorplates

• Illustration example



• Are there any floor anchors /footplates missing or not fitted properly?

  Safe

  At Risk

  N/A

• Please provide photo of findings

  Media

• Note location of anchors here

Vertical alignment

• Illustration example



• Has the rack moved out of vertical plumb (leaning forwards, backwards or to the side)?

  Safe

  At Risk

  N/A

• Please provide photo of findings

  Media

• Note location here

Upright guards

• Illustration example



• Are the upright guards damaged or missing?

  Safe

  At Risk

  N/A

• Please provide photo of findings

  Media

• Note location here

Spacers

•

• Are racking spacers missing or damaged?

  Safe

  At Risk

  N/A

• Please provide photo of damage or area where spacers should be

  Media

• Note location here

  Media

• Do all bays have the safe working load displayed clearly?

  Yes

  No

  N/A

• Have any alterations occurred (bay height for example) which have not had the safe working load reconfigured to accommodate the changes?

  Safe

  At Risk

  N/A

• Have all repairs been conducted by a competent person?

  Safe

  At Risk

  N/A

• Do you have other items you feel need further investigation or independent checking

  Yes

  No

  N/A

• Note location of item in question here

• Please provide photo evidence.

  Media
