Title Page
-
Document Number
-
Materials Number
-
Materials Name
-
Conducted on
-
Prepared by
-
Level (xx)
-
Location
-
Document Number (xxx)
-

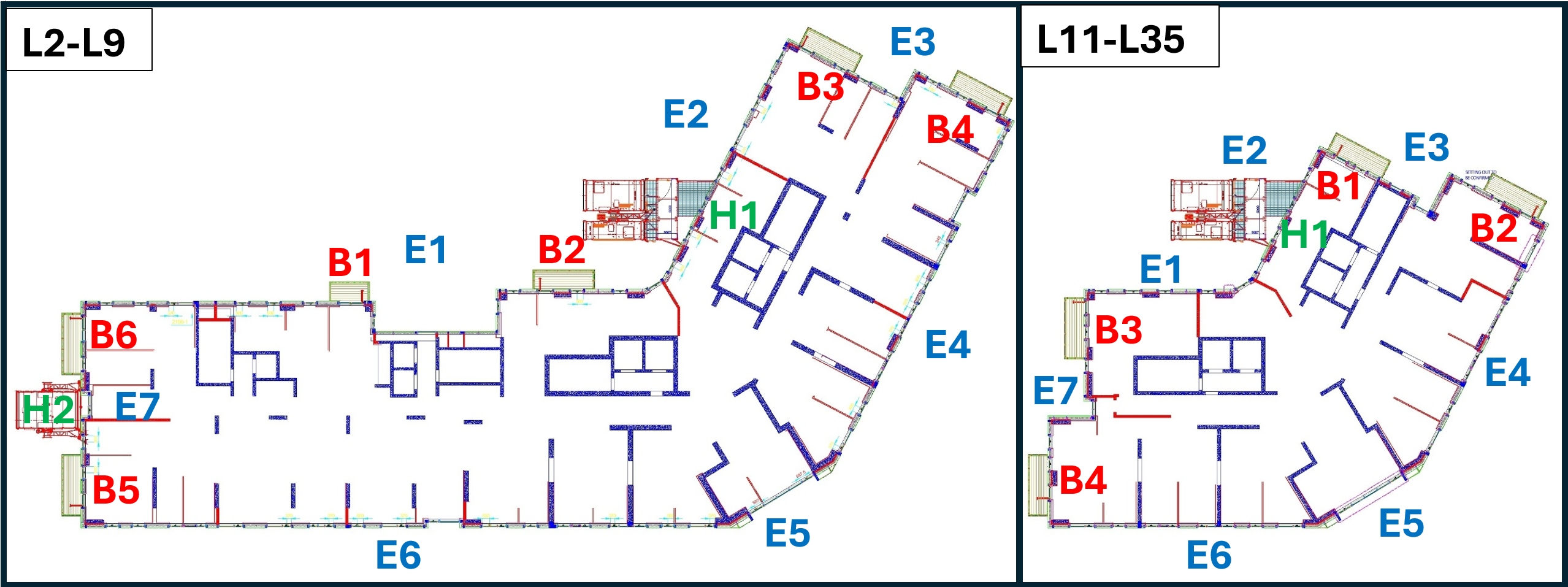

Location:
E1 - Elevation 1; E2 - Elevation 2 ……
H1 - Hoist 1; H2 - Hoist 2 ……
S1 - Shear Wall / Stair 01; S2 - Shear Wall / Stair 02 ……
B1 - Balcony 1; B2 - Balcony 2 ......
P1- Plot 1; P2 - Plot 2 ……
Signatures
-
Installation Company
-
Name
-
Signature
-
Lingyun Representative
-
Name
-
Signature
-
OSHEA Representative *optional
-
Name
-
Signature
Control & Check
-
Are brackets installed and checked as approved drawings?
-
Is gasket installed and checked as approved drawings?
-
Check if T bar supports are in line and level and Outer & Inner gasket fully installed to profile?<br>
-
Drainage cut-out completed along length of profile as per specification and drainage cut-out completed along length of profile as per specification?
-
Check Element for damage
-
Widget system fully installed and engaged?
-
Vertical joint strips installed completely?
-
Check Element for line and level (joind gap) as per drawing.
-
Has the element been cleaned on the internal and external face?
-
Check Element for interface gasket installation
-
Sealant applied to details as per Lingyun drawing /specyfication
-
EPDM membrane properly sealed on joints. (if applicable)
-
Are connections between elements completed as per approved drawings?
-
Is the gasket properly engaged into and under the element?
-
Have units been installed, protected and secured as per drawings and<br>RAMS?
-
Check Element for correct installation location and no missing components?
-
Has the area been cleaned and waste removed to allocated bins?
-
Additional documentation is required: Floor plan drawing marking the elements
-
Any other Comments/Remarks?
