Title Page

  • Site conducted

  • Conducted on

  • Prepared by

  • Location

Electrical Inspection

Switchboard Safety

  • Are all circuits protected by an appropriate sized over current protection device

  • What circuits are not currently protected?

  • Photo of switchboard

  • RCD (all circuits).png
  • Photo of switchboard

  • Are the ceramic fuses installed?

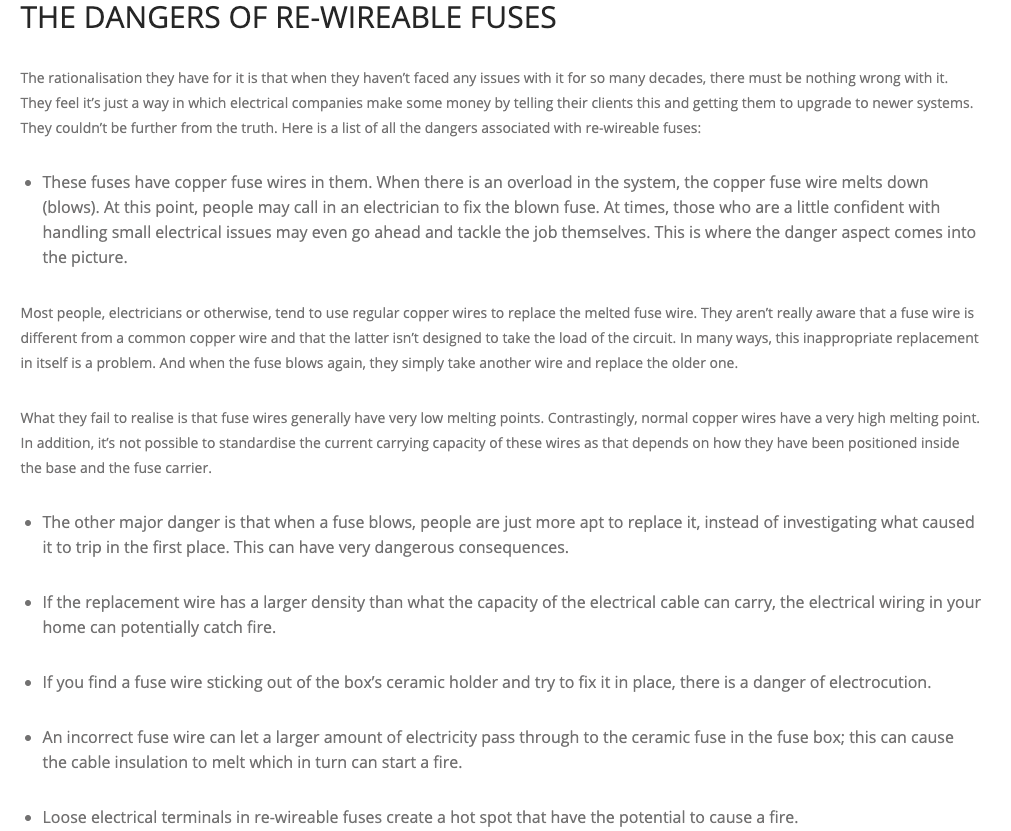

  • Screen Shot 2020-10-14 at 10.24.23 am.png
  • Are there exposed live parts

  • Photo of exposed live parts

  • Is the mains cabling in good condition?

  • Size of mains cabling

  • Is the point of attachment in good condition and inline with current standards?

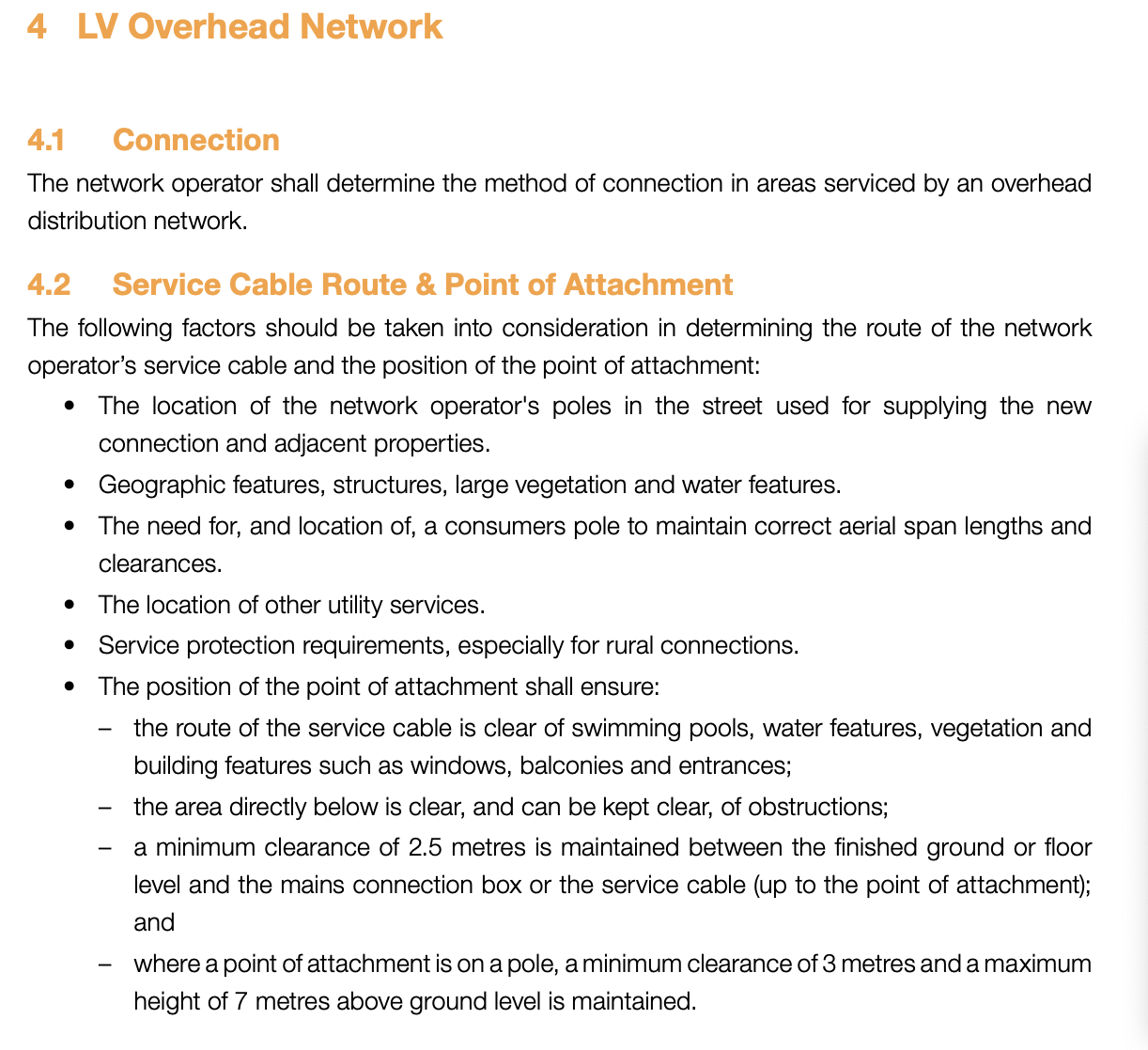

  • Point of attachement info.png
  • Photo of sub-standard cabling?

  • Attach info regarding cotton braid cabling

  • Is the switchboard structurally sound?

  • Is the MEN link installed and the correct size?

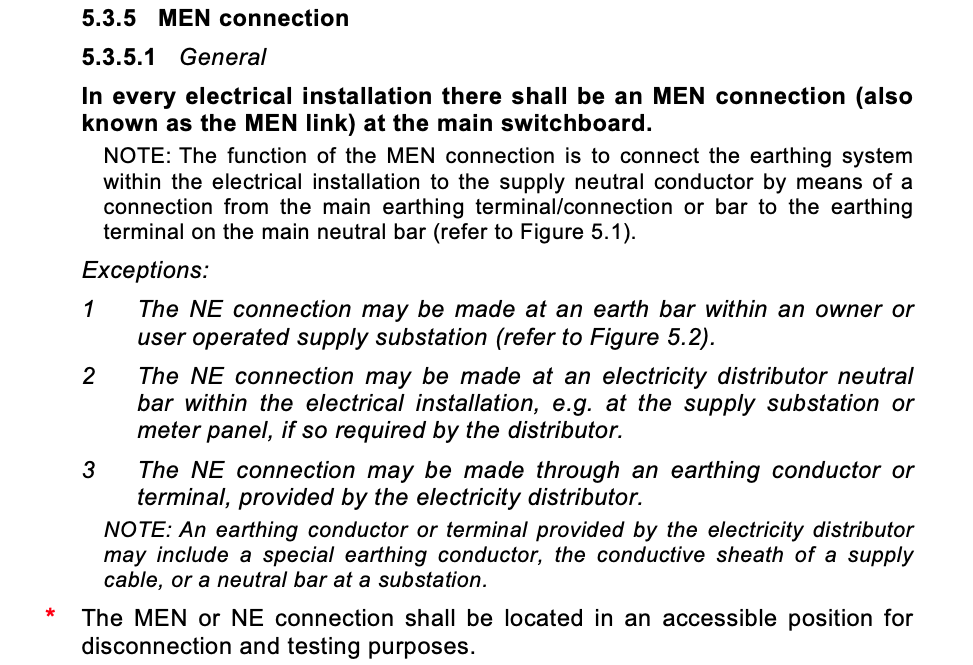

  • MEN link - clause.png
  • Is the main earthing electrode installed and in good condition?

  • Main earthing clause.png
  • Photo of the main earthing electrode

  • Is there potential asbestos within the switchboard?

  • Asbestos risks .png
  • Is the switchboard adequately labelled?

  • Is the switchboard adequately fire sealed?

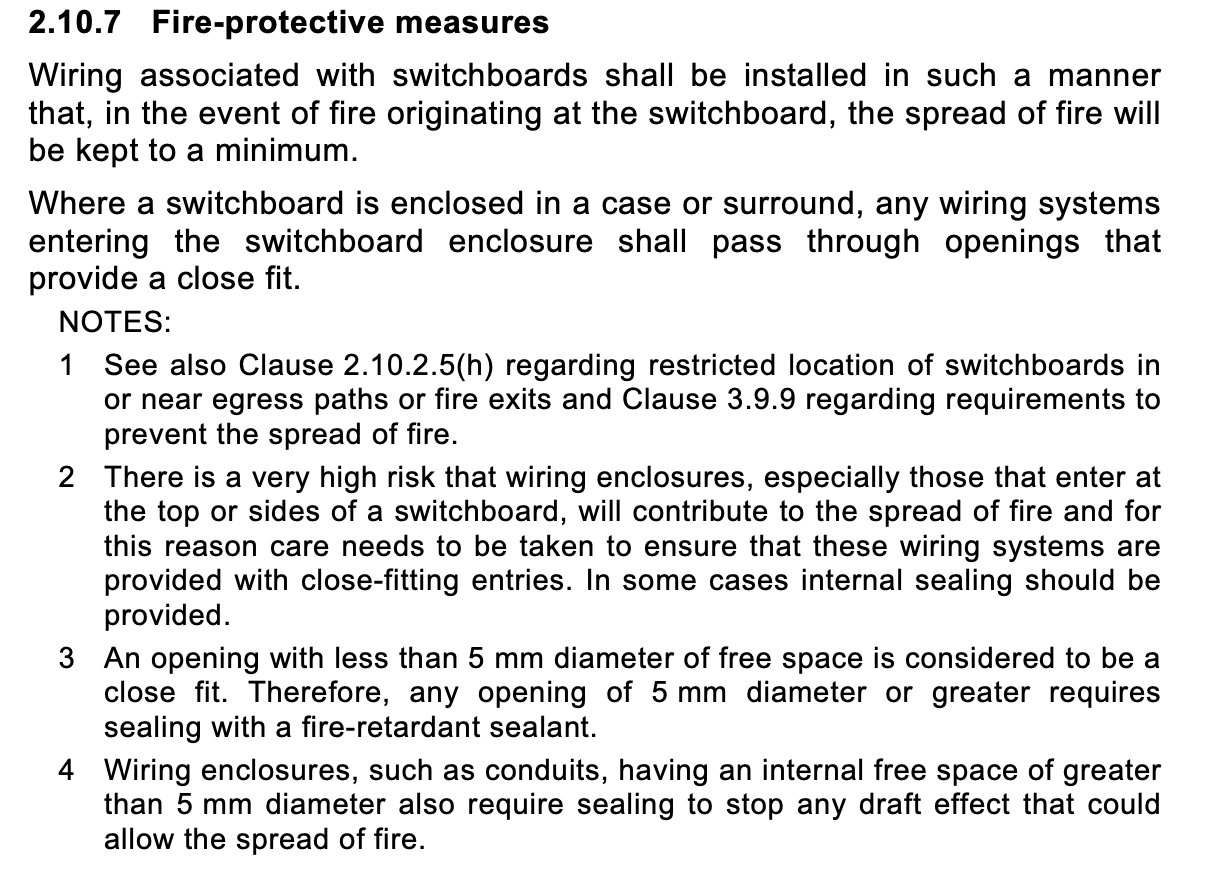

  • Fire sealant.png
  • Does the switchboard have surge protection?

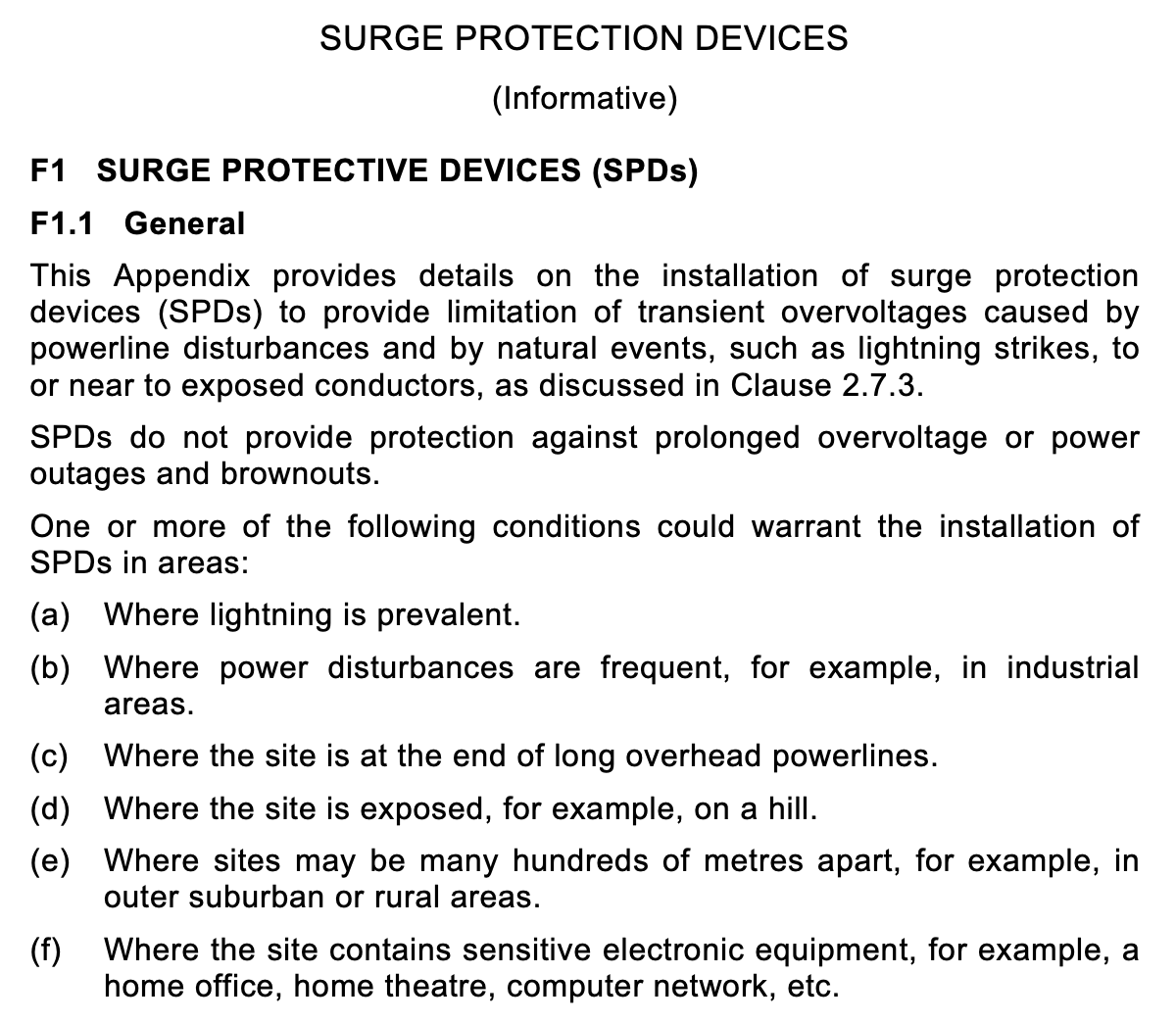

  • Surge protection.png
  • Does the switchboard have arc fault protection?

  • Arc fault info

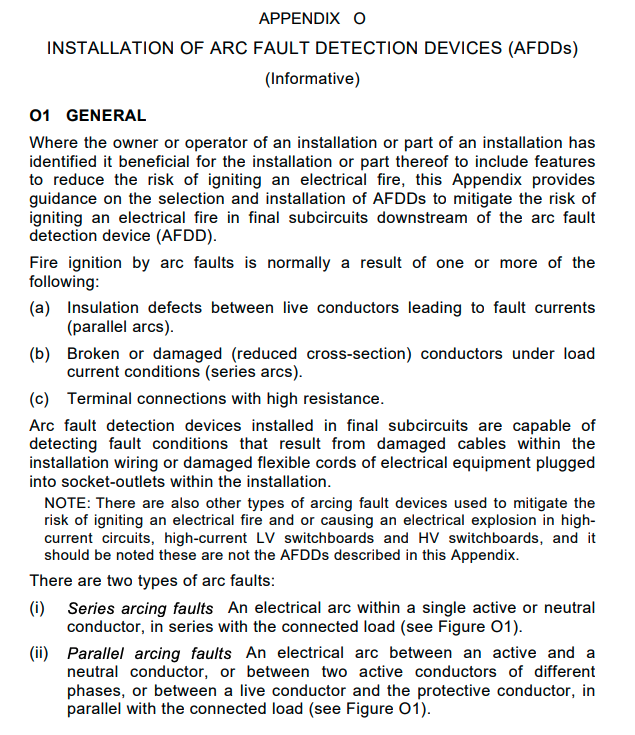

    Screen Shot 2020-10-15 at 9.59.51 am.png
  • Is the switchboard cabling TPS equivalent?

  • Photo of sub standard cabling

  • Sub standard cabling info

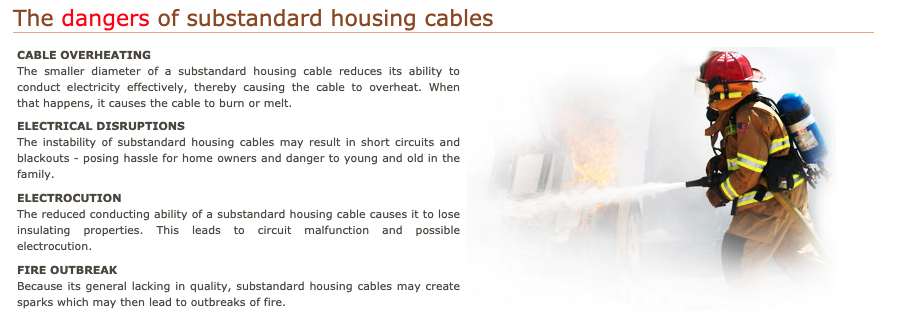

    Screen Shot 2020-10-15 at 10.01.21 am.png

Smoke Alarm Safety

  • Are there hard wired smoke alarms installed?

  • Are there 10Y lithium smoke alarms installed?

  • Photo of smoke alarm

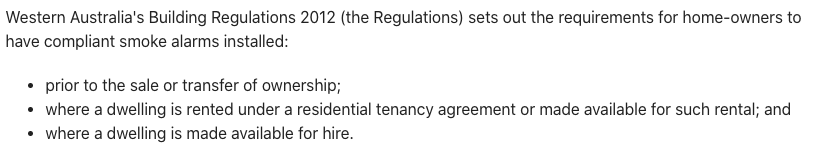

  • Screen Shot 2020-10-15 at 10.14.40 am.png
  • Photo of hard wired smoke alarm

  • Are the smoke alarms in date?

  • Do the smoke alarms operate under test conditions?

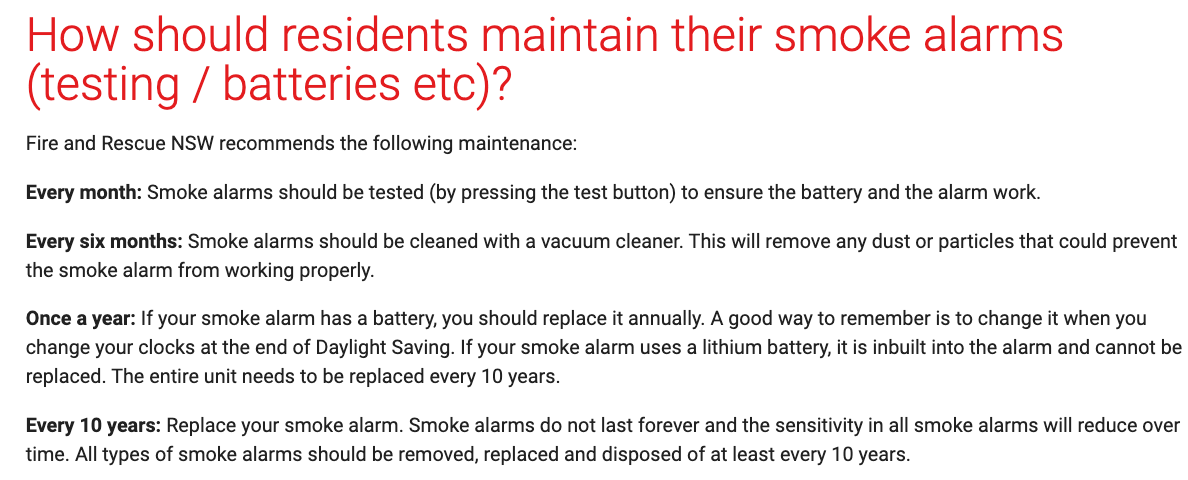

  • Smoke alarm testing.png
  • Are the smoke alarms installed in the correct locations in accordance with state regulations?

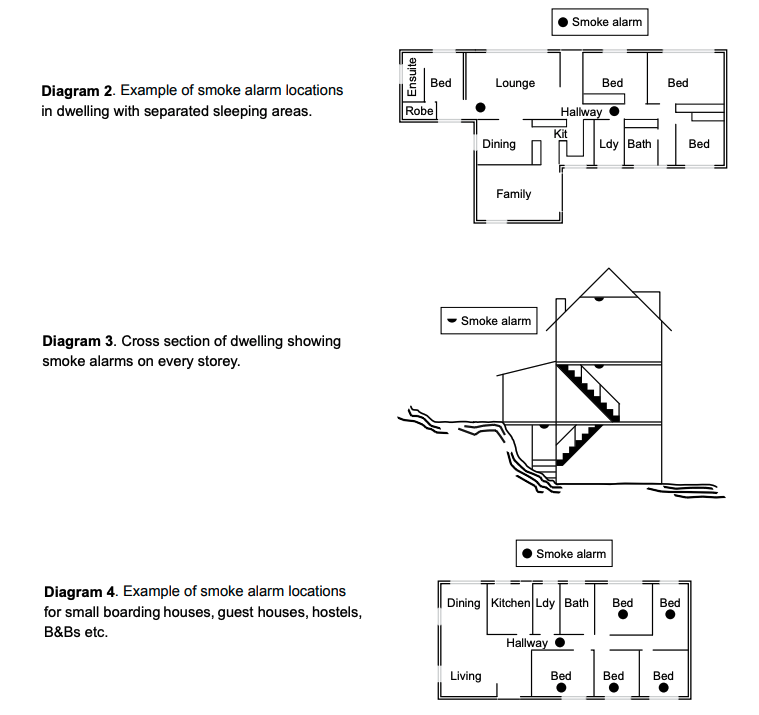

  • Smoke Alarm Locations.png
  • Are the smoke alarms interconnected?

  • Smoke alarm interconnects.png

Functionality

  • Are all light fittings in good working order?

  • List faulty fittings and locations

  • Photo of faulty fittings

  • Are there halogen down lights installed?

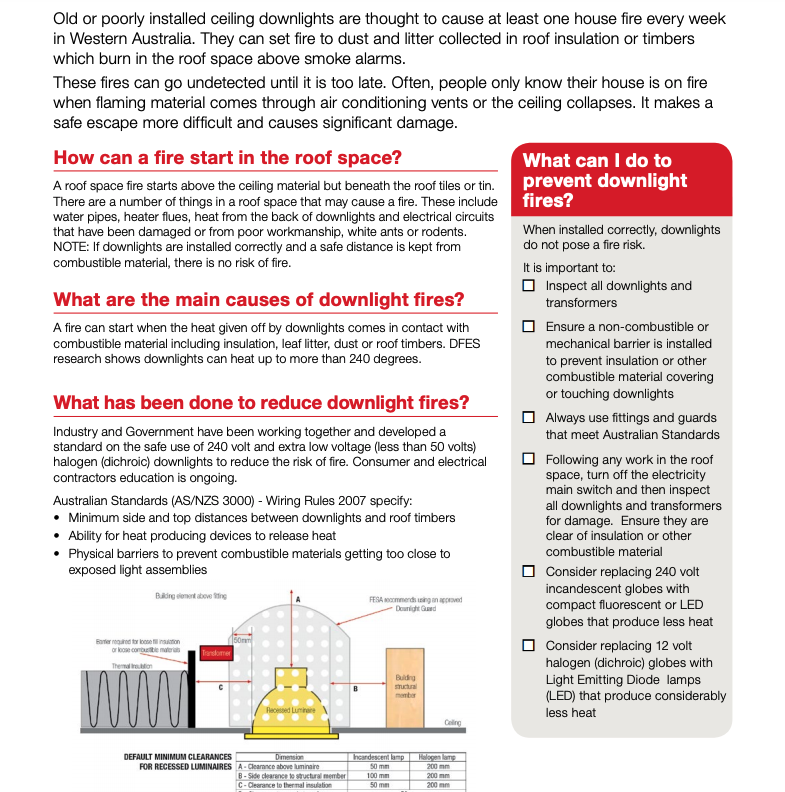

  • Halogen Down light info.png
  • Are all power socket outlets in good physical condition?

  • List damaged socket outlets and locations

  • Photo of damaged outlets

  • Are fixed electrical appliances in good working order

  • List faulty appliances

  • Photo of faulty appliance

  • Does the cooktop have a local isolation switch installed?

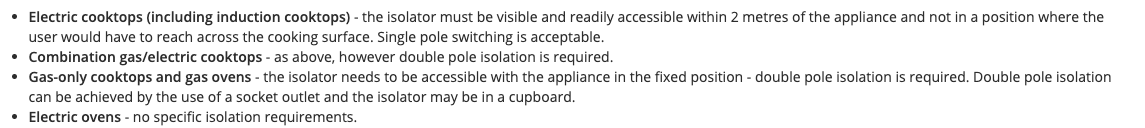

  • Cooktop local isolation - info.png
  • Are the AC units in good working order?

  • List faulty unit, size and location

  • Photo of faulty unit

  • Are the filters in good condition?

  • Attach photo of filters

  • Does the AC unit have a local isolator installed?

  • What is the age of the unit?

Solar

  • Is there a solar system currently installed?

  • Screen Shot 2020-10-15 at 10.36.38 am.png
  • Is the solar system optimised for maximum efficiency?

  • Is the inverter is good condition?

  • Photo of the inverter

  • Is the cabling secure and correctly installed?

  • Are the panel frames earthed?

  • Screen Shot 2020-10-15 at 10.43.16 am.png
  • Are the panels clean?
