Induction RPAS - Matrice 350RTK V1.1

• This induction is designed for operational Remote Pilots and contains a self-paced section where you watch training videos that will help build your basic knowledge of the M350RTK RPAS and the Pilot 2 App.
  The practical component will be conducted once the pilot has completed the self-paced section. The practical component will include flight time resulting in your endorsement on the M350RTK. 2 hours of flight time will need to be gathered to be able to use the M350RTK operationally.

• Site conducted

  Select

• Name of RPA Pilot being inducted

• Conducted on

  Date

• Watch each video.



• DJI Matrice 350 RTK: Everything You Need To Know https://www.youtube.com/watch?v=eS78BDigxso (08:07 minutes)

  Date

• DJI Matrice 350 RTK: First Flight https://www.youtube.com/watch?v=1pK3kmWpQIM (07:49 minutes)

  Date

• DJI Matrice 300 RTK: Three Propeller Emergency Landing (same feature in M300RTK) https://www.youtube.com/watch?v=5-nisQPmVl4 (00:34 minutes)

  Date

• DJI RC Plus Overview https://www.youtube.com/watch?v=d_Zu1oPnpBI (15:21 minutes)

  Date

• A series of videos on the features and functions of the DJI Pilot 2 App using the DJI RC Plus Controller. (All app features are also applicable for the DJI Pilot 2 App for M300 and M30)

• Understanding The DJI Pilot 2 Home Page: Episode 1 https://www.youtube.com/watch?v=sCXFOuUduDw (04:36 minutes)

  Date

• DJI Pilot 2 - Preflight Checklist, Before Your First Drone Flight: Episode 2 https://www.youtube.com/watch?v=P3JkMtsmUQo (03:34 minutes)

  Date

• Understanding The DJI Pilot 2 Status Bar: Episode 3 https://www.youtube.com/watch?v=Hf3BUnRiUaQ (02:01 minutes)

  Date

• How To Access The FPV Camera On DJI Pilot 2: Episode 4 https://www.youtube.com/watch?v=02gcV379TT0 (07:57 minutes)

• Using DJI Pilot 2 To Access Gimbal and Payload View: Episode 5 https://www.youtube.com/watch?v=GOLUk3ePy_Y (07:57 minutes)

  Date

• How Map View Works On DJI Pilot 2: Episode 6 https://www.youtube.com/watch?v=oWeyKIyvQqY (01:35 minutes)

  Date

• Matrice 350RTK - Specs
  Weight 6.47kg with two TB65 batteries. 7.3kg with H20T attached
  Maximum takeoff weight 9.2kg
  Maximum Payload 2.7kg
  H20T weight 828g
  IP55 when setup for flight - (see table below for more information)
  Maximum wind speed - 43kmh (12m/s)
  Operating temperature range: -20° C to 50° C

  Demo -
  Attach camera while RPA still in case
  Attach landing legs while still in case
  Remove RPA and unfold the Frame Arms
  Insert two TB65 batteries - show battery lock

  Identify -
  Antennas
  D-RTK Antennas
  Infrared and Vision sensors all sides
  ESC LED's
  Aircraft Status Indicators
  FPV camera
  Upward and downward beacons
  Auxiliary lights - top and bottom
  Power button
  Ports

  DJI AirSence - ADS-B transceiver

  Three propellor emergency landing.
  Right stick, north, south, east west. CSC to stop motors close to the ground.

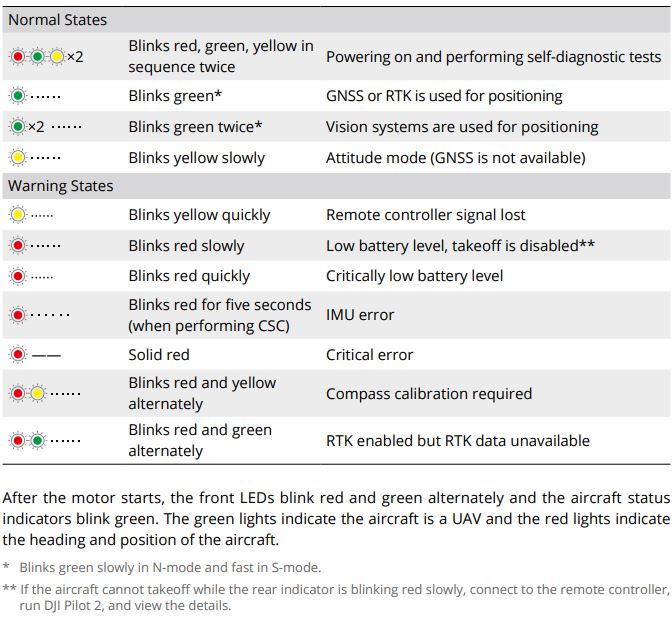

• Aircraft Status Indicator Status



• IP55 Protection Rating

• Operations in rain / IP rating (Manufacturer Specification): - IP55 rating - Do NOT fly if the amount of rainfall exceeds 100 mm in 24 hrs - Do NOT fold the arms in the rain. Ensure aircraft is free of any liquid by wiping it carefully before storing in the carrying case. - Ensure battery ports, battery compartment ports, battery surface are dry before inserting batteries (Change batteries undercover)
  - Ensure aircraft is fully set up before exposing it to rain - Ensure aircraft shell has no cracks and other damages - Point sensor (e.g. visual/thermal camera payload) down when not needed to avoid drops on the sensor
  - Ensure aircraft and equipment exposed to rain is properly dried before storing

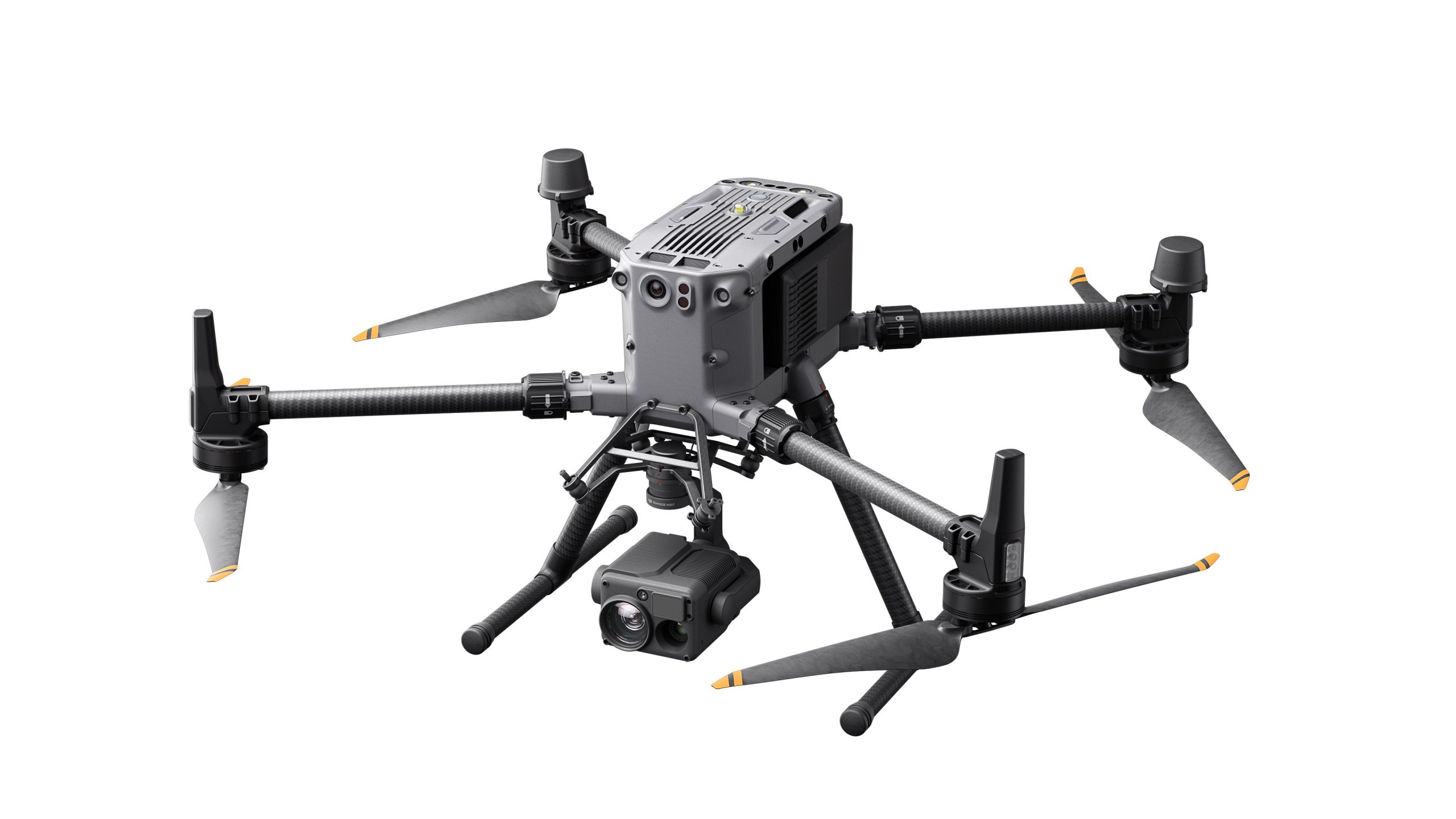

• Matrice 350RTK

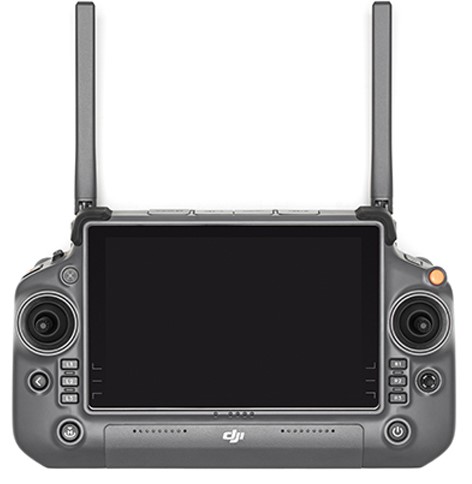

• Remote Control - Remote Controller Plus
  Two controllers - Advanced Dual Operator Mode
  Can switch full flight control and camera control between them, both directly connect to RPA
  Inbuilt battery as well as hot-swappable WB37
  Battery life -
  Internal battery: 3 hours 18 minutes . Charge time: 2 hours
  Internal and external battery: approx. 6 hours.

  Identify -
  Touch screen
  Antennas
  Insert WB37
  Power button
  Back button - press or hold for Functions
  RTH
  Flight pause button
  Flight mode switch
  Status LED and Battery Level LED's
  5D button
  Confirm button
  Charging port
  Handle

  HDMI Port
  Micro SD card slot
  USB-A port
  Record button
  Focus / Shutter button
  L1, L2, L3, R1, R2, R3, C1, C2, C3 Buttons
  Gimbal control dials



• Smart Controller

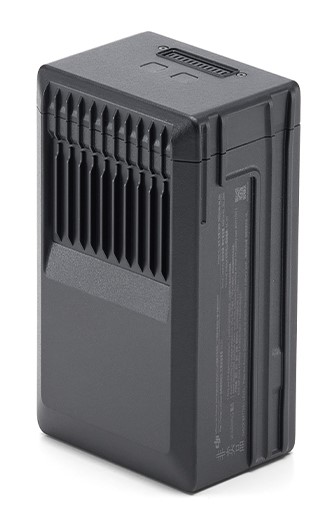

• Intelligent Flight Battery - TB65
  Batteries always operate in the same pairs
  Each LiPo battery has a capacity of 5880mAh, a voltage of 44.76V, and energy rating of 263.2Wh.
  Weight -1.35kg each
  Smart charge/ discharge functionality
  Water-resistant
  Do not drop the battery
  Battery level check
  IP55 when installed in the aircraft

  Batteries can be swapped out without turning the RPA off. Remove one battery replace, wait 3 seconds and then replace the second battery.

  Manual heating: hold the switch for 4 seconds. This keeps the batteries between 16°C and 20°C for about 30 minutes. Press and hold the battery button for 2 seconds to stop heating.
  Auto heating: If low temperature is detected, the battery will automatically heat up to maintain a temp. between 16°C and 20°C

  Both batteries are turned on at the same time by the power switch on the Matrice
  Removal and connection to Matrice.
  Don't charge straight after flight when hot
  Be careful to keep the power connector clean from dirt and fluff

  The ideal battery charging temperature is between 15°C and 40°C
  Ideally, the battery should be used in temperatures ranging from -20° C to 50° C
  Discharge in Pilot 2 app set to start after 5-7 days (resets countdown whenever battery level button is pressed)
  Discharging automatically stops at around 60% and takes approximately 6 days When a battery has started to discourage it should not be flown until charged.
  The batteries should be stored between 40-60%
  Approximately 55 minutes of flight time without a payload

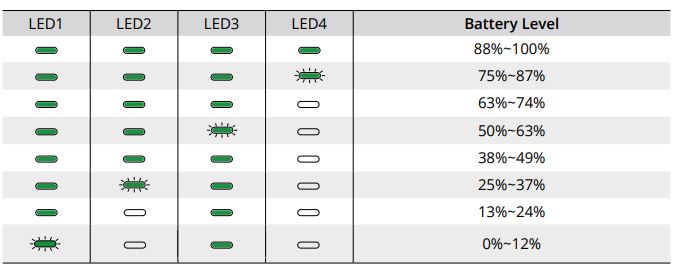

• Battery Level Indicators



• WB37 Battery
  Capacity of 4820 mAh, a voltage of 7.6V
  Do not drop the battery
  Battery level check
  Removal and connection to Smart controller
  Does not have a discharge feature - not necessary for battery type
  Takes about 70 minutes to charge from flat in the BS65.



• Batteries

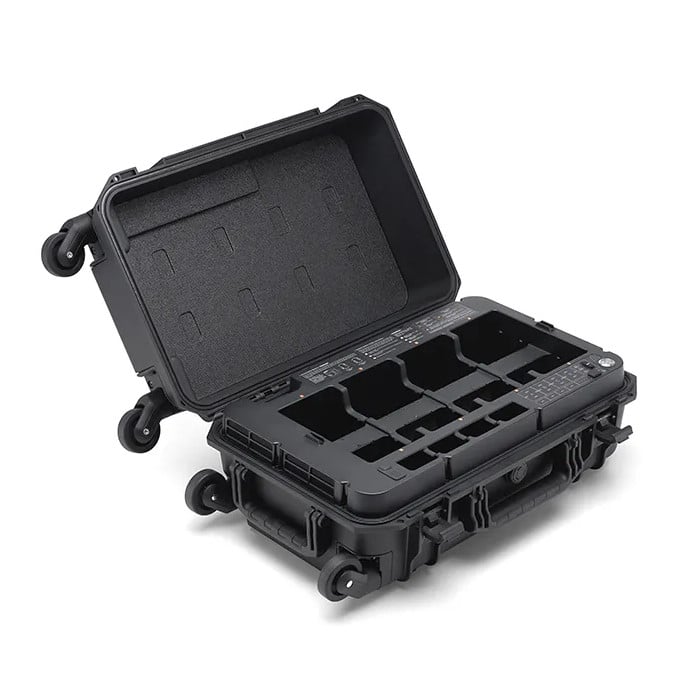

• BS65 Battery Station
  Charges only 1 pair TB65's at a time - but charges 2 batteries with the most amount of remaining battery power first, starting with pairs.
  About 60 minutes to fully charge the TB65 battery, and 30 minutes to charge from 20% to 90% battery level
  When the temperature of the battery is too low, it will warm up automatically before charging
  Charges 1 WB37 battery at a time - most amount of remaining battery power first. Takes 70 minutes.

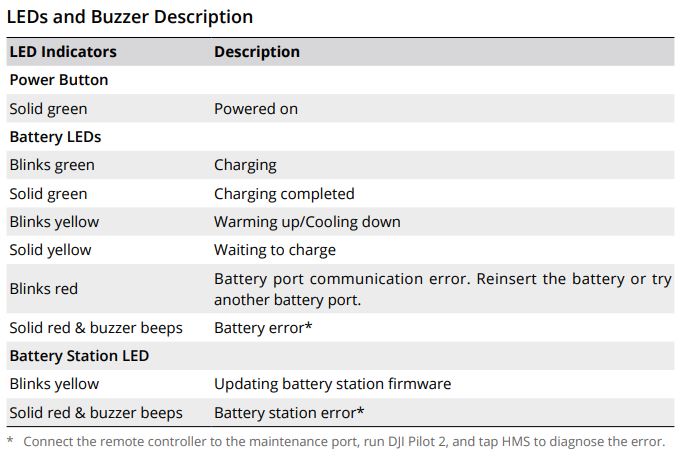

• Status LED Indicator Descriptions



• BS65 Battery Station

• H30T Camera and Gimbal
  Weight 920 g
  3-axis
  ZOOM lens - optical and digital zoom

  WIDE lens - 48 MP

  Thermal lens
  Video and Photo Resolution: 1280 x 1024

  Laser Rangefinder
  Range - 3-3000 meters
  Micro SD card in the camera - all video and images are recorded to the one card and can be done at the same time - Current View, Wide Photo, Zoom Photo and Infrared Photo

  Connect to Matrice. Red dots are locked.
  Note release lock on Matrice when removing the camera.

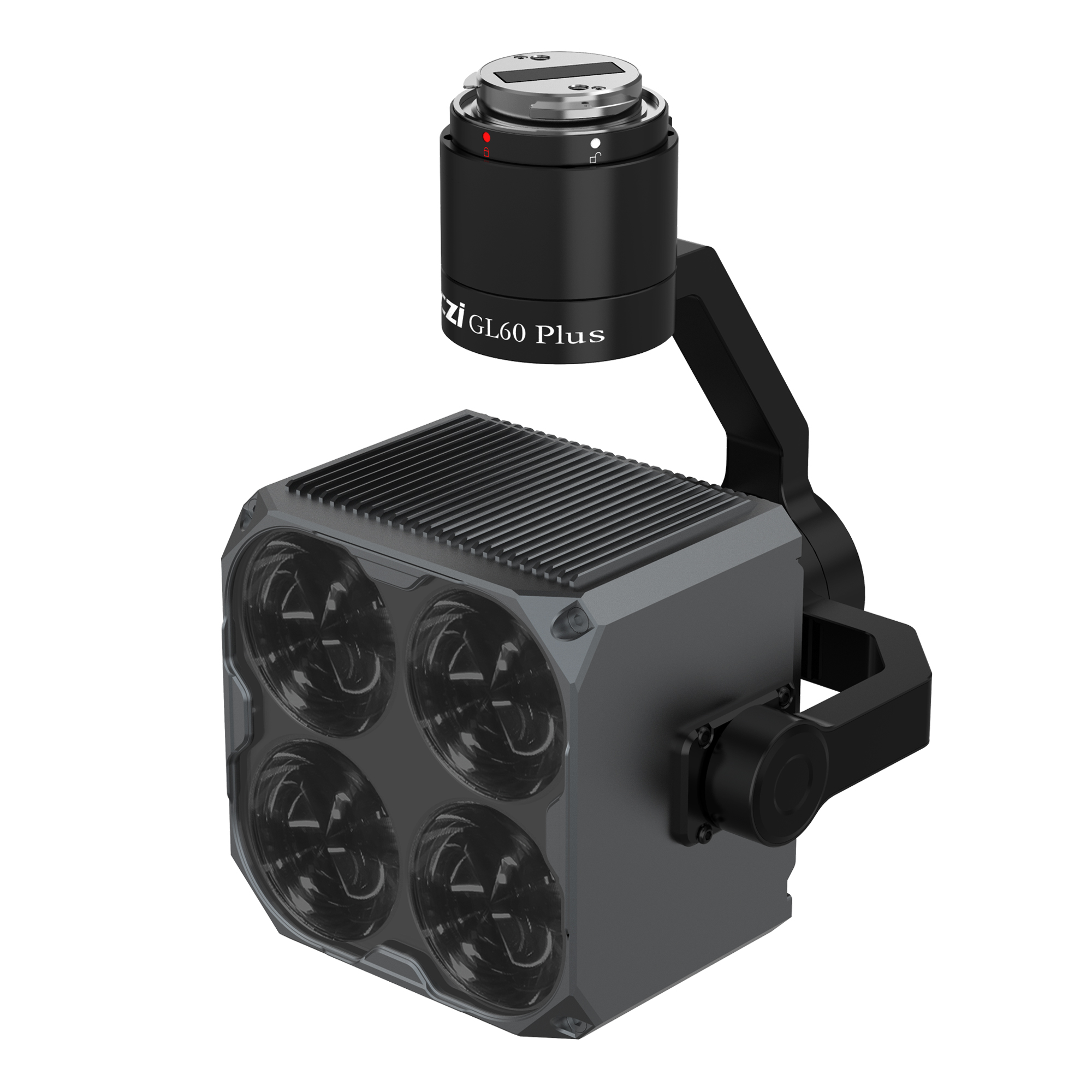

• GL60 Spotlight
  Weight 750 g
  Operating temperature range: -20° C to 50°
  LED Power: 60W (without OSDK cable) - 120W (With OSDK cable attached)
  Lumen: 8,000 (without OSDK cable) - 13,400 (With OSDK cable attached)



• Camera and Gimbal

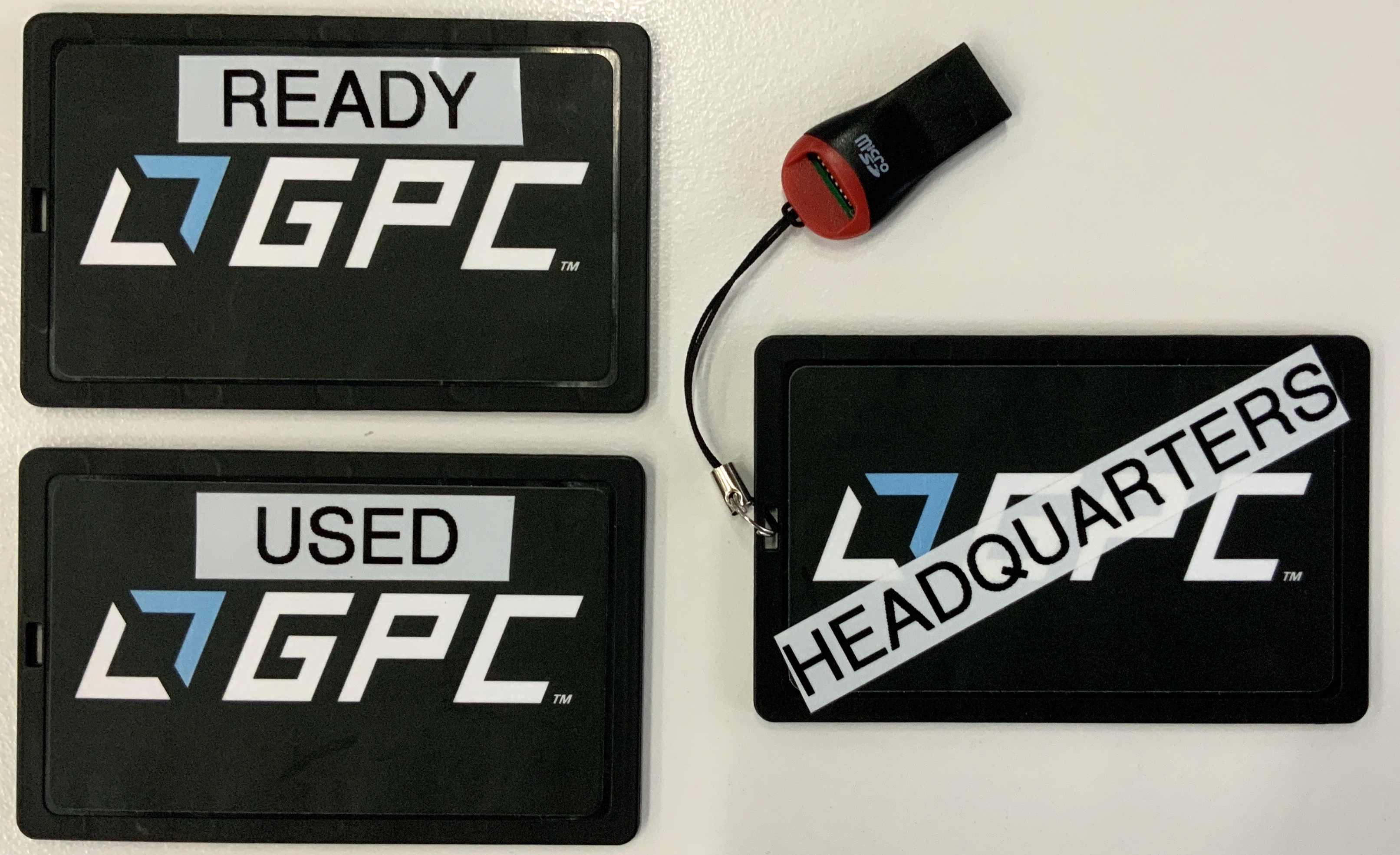

• MicroSD Card Holders
  READY holder means cards are available for use
  USED holder means cards have images yet to be transferred for records
  HEADQUARTERS holder is for transferring cards to and from the flight area a HQ / ICC if needed
  Also contains microSD to SD card adaptor
  Be careful, only apply light pressure on tab when removing cards



• MicroSD Cards

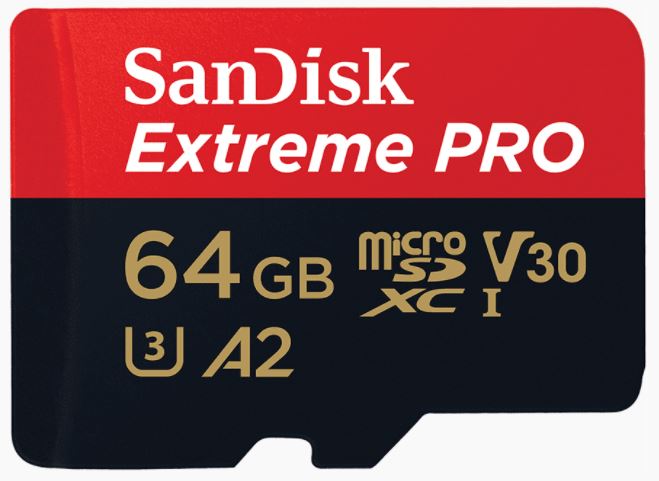

  10 x 64GB U3 cards are provided in the Matrice kit



• Image handling

Practical on ground Demonstration

• Setup RPA and Controllers: Camera, landing gear, arms, batteries.

• Show Pilot app settings: HMS All menu items -

• Show Dual Controller features: Gimbal control Pilot Handoff - lock takeover Out of range - change to other controller

• H30T features: Move between IR - Wide - Zoom Set zoom level while in Wide view Double Tap Rangefinder

Practical Flight Demonstration

• Primary Flight Display: Speed Wheel - Horizonal speed - Wind speed and direction Navigation Display Obstacle Avoidance Display

• H30T Smart Track

• Comments:

• The current (as at this induction date) Matrice 350 manual is available at this link
  https://dl.djicdn.com/downloads/matrice_350_rtk/20240516/Matrice_350_RTK_User_Manual_v1.0_ENII.pdf
