Cabinet Inspection

  • Visually check the rack for any damage or scratches caused during the build process.

    Minor scratches should be repaired using the colour coded touch up paint.

  • Front of rack?

  • Left side of rack?

  • Right side of rack?

  • Back of rack?<br>

  • Inside rack?<br>

Cabinet Kit List.

  • Brush Strips should be installed as per image.

    no label
  • Does the rack have correctly installed brush strips?<br>

  • The Rack Build reference is located here:

    no label
  • Enter the Build reference i.e. Rack build Spec A

  • The switches should be installed in the following order and U positions as shown:

    no label
  • Are the switches installed in the correct U location according to the specific build requirement?

Power Configuration.

  • There are two types of rack build, "A" with orange PDU at the top and "B" with the green PDU at the top. The image depicts Rack Build "A"

    no label
  • Which type of rack build A or B?<br>

  • For rack build A (mark n/a for build B)

  • Source 1 Baytech installed?<br>

  • Confirm Orange PDU above Green PDU?

  • PC1285 power cords should be locked in position as per the picture:

    no label
  • Confirm each of the Baytech PC1285 power cords are locked in place

  • The picture depicts Rack Build A taping:

    no label
  • Confirm power cord are all labelled with tape as per the image.<br>

  • For rack build B (mark n/a for build A)

  • Source 2 Baytech unit installed?

  • Confirm Green PDU above Orange PDU?<br>

  • PC1285 power cords should be locked in position as per the picture:

    no label
  • Confirm each of the Baytech PC1285 power cords are locked in place?<br>

  • The picture depicts Rack Build B taping:

    no label
  • Confirm power cords are all labeled with tape?

  • Are the orange PC938 power cords plugged into correct position?<br>

  • Location of Baytech ID label for Rack Build "A" and "B"

    no label
  • Confirm correct placement of Baytech ID label?

PDU's

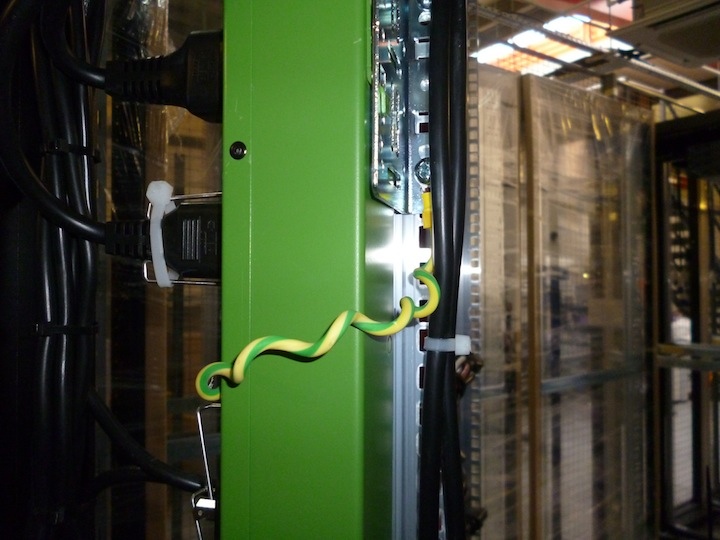

  • Orange and green PDU's should be earthed as shown:

    no label
  • Confirm that all PDU's are correctly earthed.<br>

  • Labelling example shown:

    no label
  • Check PDU's are labelled:<br><br>1st (top) "PDU 1"<br>2nd. "PDU 2"<br>3rd. "PDU 3"<br>4th. "PDU 4"<br><br>

  • PDU 1 labelling 10A - 17A<br>

  • PDU 2 labelling 10B - 17B?

  • PDU 3 labelling 1A - 9A?

  • PDU 4 labelling 1B - 9B?

Power Cords

  • Are C19 cords locking in position and correctly seated?

  • Check and trace commando end ORG1 PDU - confirm correct label "ORG 1 PDU"?

  • Check and trace commando end ORG2 PDU - confirm correct label "ORG2 PDU"?

  • Check and trace commando end GRN1 PDU - confirm correct label "GRN1 PDU"?

  • Check and trace commando end GRN2 PDU - confirm correct label "GRN2 PDU"?

  • Are PC1285 power cords clipped and cable tied?

  • Confirm 34 no. Power cords secured with locking clips and correctly seated?

  • Confirm PDU 1 labelling (starting from top) 17A -10A and ensure labels are clearly visible?

  • Confirm PDU 2 labelling (starting from top) 17B -10B and ensure labels are clearly visible?

  • Confirm PDU 3 labelling (starting from top) 9A -1A and ensure labels are clearly visible?

  • Confirm PDU 4 labelling (starting from top) 9B -1B and ensure labels are clearly visible

  • Confirm cable ties are all cut flush?

  • Are male commando cables consistently routed?

  • Confirm PC938 power cords are consistently routed?

  • Confirm power cord in position U26 is routed under the middle bar not over?

Switches

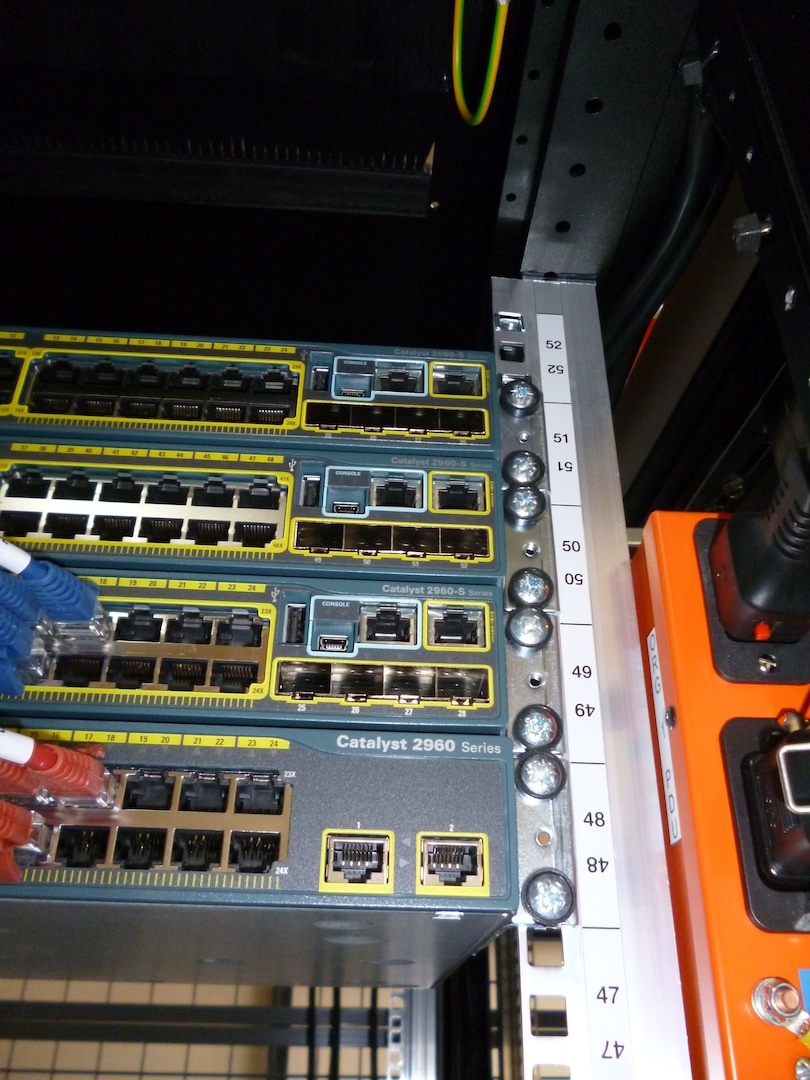

  • The photo shows the correct mounting positions for the switches.

    no label
  • Confirm Switches are mounted as per photo?<br>

  • Switch management arm placement:

    no label
  • Are arms in correct order ?

  • Confirm Switch 1 is unpatched

  • Confirm Switch 2 is patched with white leads?<br>

  • Confirm Switch 2 leads labelled as 1-17white and are in correct corresponding port no. ?

  • Confirm Switch 3 is patched with blue leads?<br>

  • Confirm Switch 3 leads labelled as 1-17Blue and are in the correct corresponding port no. ?

  • Confirm Switch 4 is patched with Red leads?

  • Confirm Switch 4 leads labelled as 1-17Red and are in the correct corresponding port no. ?

  • Confirm power cords are correctly seated in Switches 1,2,3 and 4

Data Cords and Fitting.

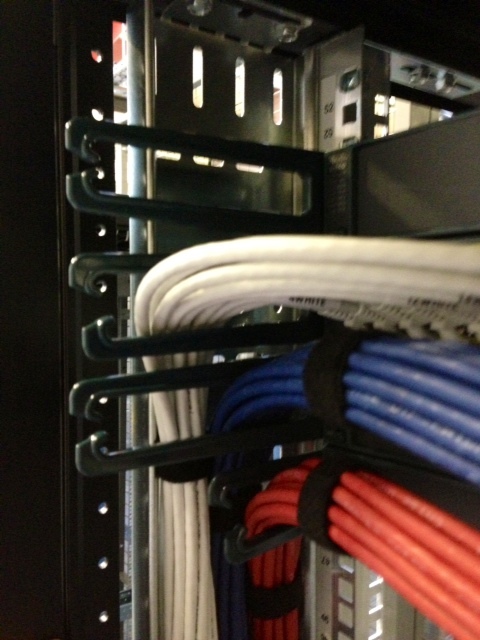

  • The attached image shows correct routing of the data cords.

    no label
  • Have data cords been correctly routed through Switch Arms?

  • Are Velcro ties present in positions 46U, 36U and 21U?<br>

  • Velcro layout:

    no label
  • Are Velcro ties consistent and neat and tidy?<br>

Server Space Cabling

  • Confirm position 2U has the following cords - 1WHITE, 1RED, 1 BLUE and power cords 1A, 1B?<br>

  • Confirm position 4U has the following cords - 2WHITE, 2RED, 2BLUE and power cords 2A, 2B?<br>

  • Confirm position 6U has the following cords - 3WHITE, 3RED, 3BLUE and power cords 3A, 3B?<br>

  • Confirm position 8U has the following cords - 4WHITE, 4RED, 4BLUE and power cords 4A, 4B?<br>

  • Confirm position 10U has the following cords - 5WHITE, 5RED, 5BLUE and power cords 5A, 5B?<br>

  • Confirm position 12U has the following cords - 6WHITE, 6RED, 6BLUE and power cords 6A, 6B?<br>

  • Confirm position 14U has the following cords - 7WHITE, 7RED, 7BLUE and power cords 7A, 7B?<br>

  • Confirm position 16U has the following cords - 8WHITE, 8RED, 8BLUE and power cords 8A, 8B?<br>

  • Confirm position 18U has the following cords - 9WHITE, 9RED, 9BLUE and power cords 9A, 9B?<br>

  • Confirm position 20U has the following cords - 10WHITE, 10RED, 10BLUE and power cords 10A, 10B?<br>

  • Confirm position 22U has the following cords - 11WHITE, 11RED, 11BLUE and power cords 11A, 11B?<br>

  • Confirm position 24U has the following cords - 12WHITE, 12RED, 12BLUE and power cords 12A, 12B?<br>

  • Confirm position 26U has the following cords - 13WHITE, 13RED, 13BLUE and power cords 13A, 13B?<br>

  • Confirm position 28U has the following cords - 14WHITE, 14RED, 14BLUE and power cords 14A, 14B?<br>

  • Confirm position 30U has the following cords - 15WHITE, 15RED, 15BLUE and power cords 15A, 15B?<br>

  • Confirm position 32U has the following cords - 16WHITE, 16RED, 16BLUE and power cords 16A, 16B?<br>

  • Confirm position 34U has the following cords -17WHITE, 17RED, 17BLUE and power cords 17A, 17B?

  • Confirm all Velcro ties are aligned and no cords are dangling

  • Confirm white cable ties are replaced with 10mm Velcro ties

Additional Checks

  • The clip on front plate should be positioned as shown:

    no label
  • Confirm correct position of front plate

  • The ITM label should be positioned as shown:

    no label
  • Confirm correct position of ITM Test Label location at bottom left corner of the cabinet?<br>

  • Have test results been checked and downloaded?

  • Perform visual check?

  • Any other comments:

  • Enter the ITM Cabledesk URL i.e. http://testrm.com/TGQHQ
